Our mission

Heaten is dedicated to decarbonizing and saving energy in industrial processes with our cutting-edge Very High Temperature Heat Pump technology. The HeatBooster heat pump efficiently recovers energy from low-value waste heat streams and transfers it to high-temperature water or steam. Thus, saving energy and carbon footprint.

High Temperature Heat Pumps to decarbonize Industrial Heat in the megawatt class

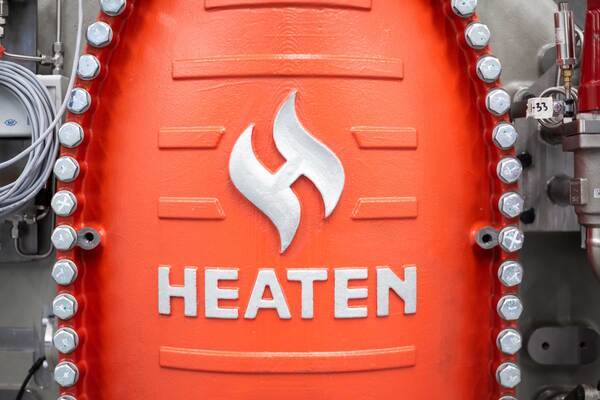

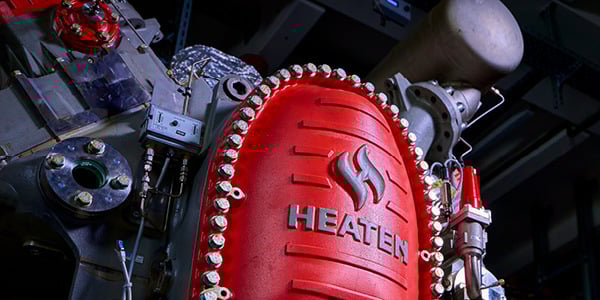

Heaten’s piston-based technology stands out due to its power range, efficiency, flexibility, and variability. Our heat pumps deliver hot water or steam up to 200°C by utilizing waste heat. By 2025, Heaten plans to roll out a product portfolio ranging from 1 to 8 MWth. Our mature technology has already logged over 40,000 operating hours in the field.

Key features of Heaten’s Very High Temperature Heat Pump Technology

  • Power Range:
    • 1-8 MWth per HeatBooster
    • Up to 50 MWth per system
  • Temperature range:
    • Heat sink: 90-200°C, steam or water
    • Heat source: 10-150°C, steam or water
  • Efficiency:
    • High efficiency with a typical COP range of 50-55% of carnot.
    • The efficiency curve is almost flat over the complete load range (20-100%).
  • Flexibility:
    • Starting with the  integration of 1 MWth and expand it up to 50 MWth. The HeatBooster technology adapts to your process and production site, not the other way around.
    • One compressor covers the whole temperature range.
    • The HeatBooster technology can use HFO’s and HC’s.
    • Due to the piston-based compressor technology it can automatically adapt to different loads and temperatures during operation.
  • Design: Modular design allowing for flexible configurations.
  • Scalability: Standard manufacturing techniques allow for fast roll out.

More on the unique technology…



Heaten's Products

The unique capabilities of Heaten’s technology make applications possible for steam both on input and out put side.

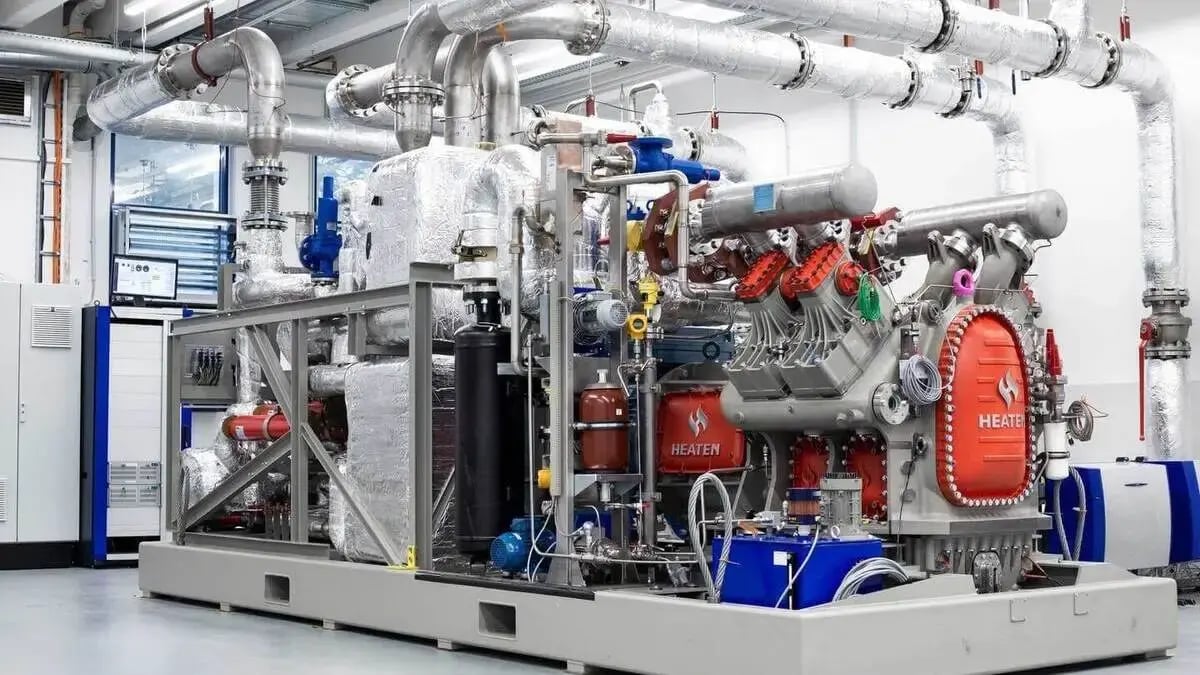

HeatBooster HBL4 up to 2MW

The HBL4 is available in three different variants:

    • Water to Water (W/W)
    • Water to Steam (W/S)
    • Steam to Steam (S/S)

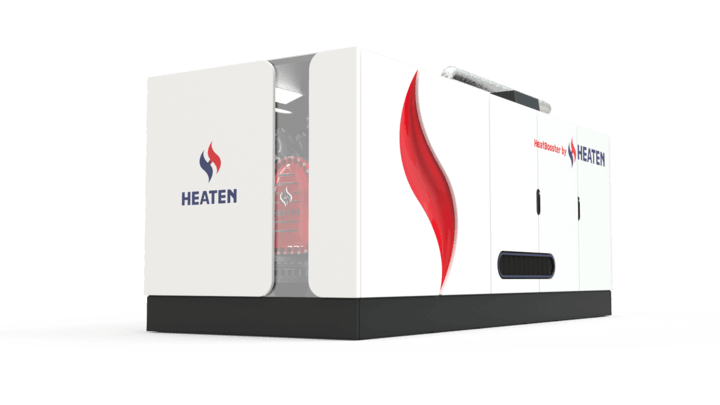

HeatBooster HBL16 up to 8MW

The scaled up 8MW version is expected to be available form 2026.



Markets & Applications

Heaten’s industrial Heat pump can be used in many applications.

Key markets include:

  • Food & Agri
  • Chemicals
  • Paper
  • Building materials
  • Energy sector

A list of applications per industry is available on Applications

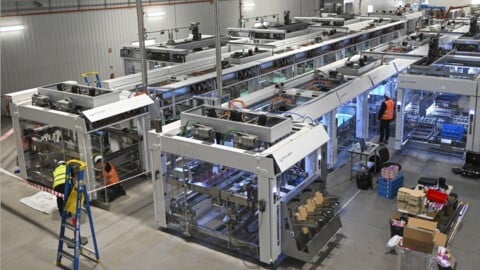

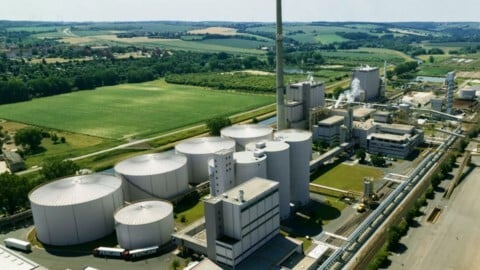

Reference projects and partnerships
